GUIDE PULLEYS
GUIDE PULLEYS
■

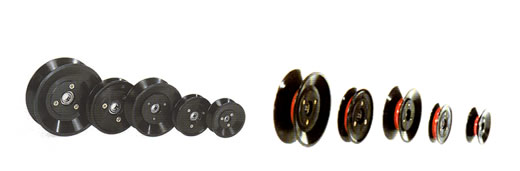

Consist of a Ceramic Contact Ring Mounted on Tough, Reinforced Plastic Flanges. Each Pulley Comes with a Single Bearing.
■
Wearproof, Heat Resistance, Smooth Rotating.
Dimensions／mm
Overall Diam
Pitch Diam
Flange Width
Bore
Bearing Width
Radius
Ceramic
Ring
Width
Ceramic Ring O.D.
Art.-Nr.
UA1001
20,0
15,5
5,0
3,0
3,0
0,5
2,0
17,5
UA1002
30,0
20,5
6,0
4,0
4,0
1,0
2,5
22,5
UA1003
30,0
15,5
10,0
3,0
3,0
0,5
2,0
17,5
UA1004
40,0
20,0
14,5
4,0
4,0
1,0
2,5
22,5
UA1005
45,0
29,5
10,5
6,0
6,0
1,0
4,5
35,0
UA1006
60,0
41,5
12,5
8,0
7,0
1,0
4,2
45,0
UA1007
60,5
29,5
20,0
6,0
6,0
1,0
4,5
35,0
UA1008
80,0
50,0
16,5
10,0
9,0
2,0
7,5
60,5
UA1009
80,0
39,5
25,0
8,0
7,0
1,0
4,5
45,0
UA1010
100,0
50,0
29,0
10,0
9,0
2,0
8,0
60,5
